Lenovo ThinkPad X1 Extreme Gen 4 Review: The business MacBook Pro

The ThinkPad X1 Extreme Gen 4 opts for a more powerful GPU while trying to balance portability with performance and for the most part Lenovo gets it right.

However, the Gen 4 can't escape Intel physics that surface a couple of caveats such as heat that can cause inconsistencies in performance as well as out-of-the-box memory configurations that dampen graphical peaks.

In exchange, customers get a 40% boost in performance over last year's model, a new 16:10 aspect ratio and a new vapor chamber that helps keep the Gen 4 quitter than older models.

 Starting at $1,652.56

In the age of sleek and powerful laptops, Lenovo has rolled out its 2021 competitor in the ThinkPad X1 Extreme Gen 4 notebook.

As a fourth-generation release, there isn't much in the way of design that has changed this go around, but the X1 does bring a couple of noteworthy changes that keep it competitive against its biggest rival in the Dell XPS15 as well as the onslaught of M1-powered MacBook Pro churn journalism.

ThinkPad X1 Extreme Gen 4 (16' Intel)
Processor Up to 11th Generation Intel® Core™ i9-11950H Processor with vPro™ (2.60 GHz, up to 5.00 GHz with Turbo Boost, 8 Cores, 16 Threads, 24 MB Cache)
Graphics NVIDIA® GeForce® RTX™ 3080 with Max-Q 16GB

NVIDIA® GeForce® RTX™ 3070 with Max-Q 8GB

NVIDIA® GeForce® RTX™ 3060 6GB

NVIDIA® GeForce® RTX™ 3050 Ti with Max-Q 4GB

Integrated Intel® UHD Graphics

Operating System Windows 10 Pro

Windows 11 Home

Windows 11 Pro - Lenovo recommends Windows 11 Pro for business.

Display 16.0" WQXGA (2560 x 1600) IPS, anti-glare, 400 nits

16.0" WQUXGA (3840 x 2400) IPS, anti-glare with Dolby Vision™, HDR 400, 600 nits

16.0” WQUXGA (3840 x 2400) IPS, anti-reflective, anti-smudge, touchscreen with Dolby Vision™, HDR 400, 600 nits

16:10 aspect ratio; supports up to 4 independent displays or 3 displays with the laptop screen.

Storage Up to 2 TB M.2 2280 PCIe NVMe Gen 4 Performance SSD
Camera FHD 1080p with ThinkPad webcam privacy shutter

Optional: FHD 1080p hybrid infrared (IR) with webcam privacy shutter

Memory Up to 64 GB DDR4 3200MHz

Up to 2 SO-DIMM slots

Dimensions Starting at: 17.7mm x 359.5mm x 253.8mm / 0.70" x 14.13" x 9.99"

H x W x D

Audio Up-firing Dolby Atmos® Speaker System

Dual far-field mics

Battery Up to 10 hours* 90Wh (MM18)

Rapid Charge technology available with included power supply unit

All battery life claims are approximate and based on results using the MobileMark® 2018 battery-life benchmark test. Actual battery life will vary and depends on many factors such as product configuration and usage, software use, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time and use.

Color Deep Black

Black with Carbon-Fiber Weave on top cover (WQUXGA + models only)

Ports/Slots 2 x USB-A 3.2 Gen 1 (1 powered)

2 x USB-C Thunderbolt™ 4 (Power Delivery, Display Port, Data Transfer)

SD 4-in-1 card reader

Optional: SIM slot

Headphone / mic combo

HDMI 2.1*

*Intel® UHD graphics only supports up to HDMI 2.0

USB port transfer speeds are approximate and depend on many factors, such as processing capability of host/peripheral devices, file attributes, system configuration and operating environments; actual speeds will vary and may be less than expected.

Keyboard Spill resistant

Backlit with white LED lighting

Redesigned TouchPad 115mm x 61mm / 4.53” x 2.40”

Call-control keys (F9-F11)

Look and Feel

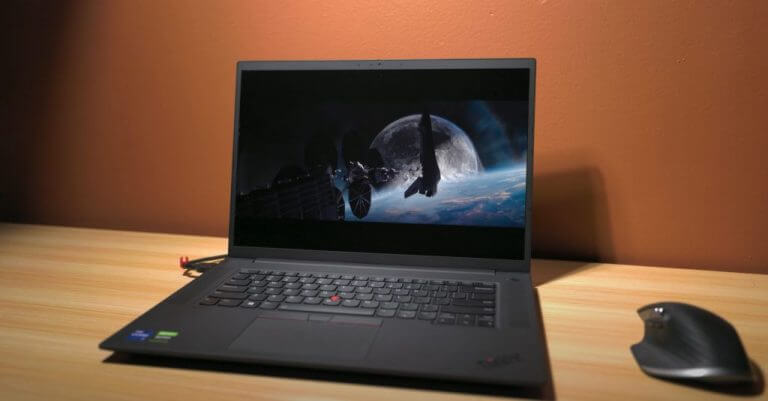

As I mentioned, the ThinkPad X1 Extreme Gen 4 looks very similar to the Gen 3 model with the only stand out change being the overall screen size that's been saddled at 16 inchs rather than the more traditional 14 and 17-inch solutions.

Speaking of the screen, buyers will be greeted with either a 16-inch WQXGA anti-glare panel with either a resolution of 2560 x 1600 (2K) or 3840 x 2400 (4K) depending on the configurations. Top model panels come equipped with touchscreens covered in anti-smudge technology as well as Dolby Vision, HDR with up to 600 nits of brightness.

Extreme Gen 4 Screen

In addition, Lenovo is finally acknowledging user requests of 16:10 aspect ratio cut displays of all three configurations.

Outside of the screen, the rest of the laptop is standard Lenovo fare with combined matte black aluminum and carbon fiber constructions, twelve-point mil-spec certification, bottom facing ventilation, 2 Thunderbolt 4, 4-in-1 SD card reader, 2USB-A, full HDMI with 2.1 support and headphone/ mic combo.

ThinkPad Extreme Gen 4 vs MacBook Port

Charging on the X1 Extreme Gen 4 uses a proprietary power-in connector, fortunately Lenovo has been pushing this connector and port combo onto customers for the past four years, so there should be a level of acquaintance with previous Lenovo customers and this semi-USB A like solution.

Lenovo is forgiven with going for this weird charging solution over an USB-C type charging connection because the Gen 4 model comes with a larger battery than previous models and powers a much beefier GPU than before.

Users can choose from 130W, 170W and 230W charger options with the latter able to do quick charging of up to 80 percent in one hour.

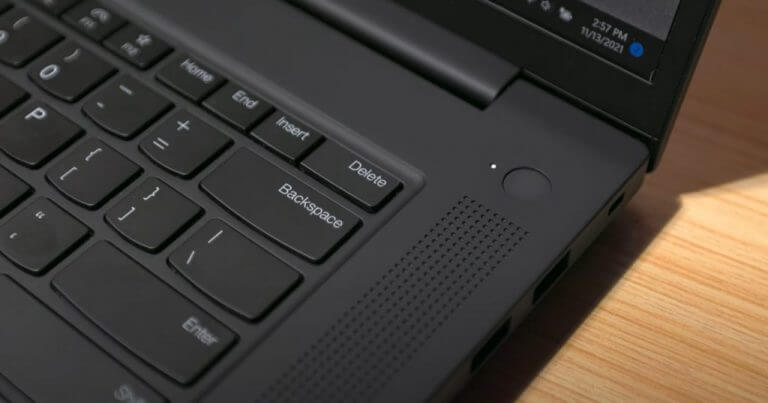

Other changes that come with the Gen 4 include a new placement of the speakers which now are top-firing like the cousin-models of the base X1s and MacBooks.

Speaking of speakers, the audio from the Gen 4 is better, but still trails behind the fidelity of a MacBook or Surface.

ThinkPad Extreme Gen 4 speaker

As for the other intangibles such as web cam and bio-authentication, they all remain the same, stuck at 720p resolution for the camera and fingerprint reader embedded in the power button.

Overall, the X1 Gen 4 maintains a sleek sub 4lbs feel and the looks are as minimalistic as most other ThinkPad's. While the Dell XPS host is very distinguishable look and feel, the Xtreme Gen 4 is a subtle black box that focuses on a balance of power and heat fairly well.

Performance

Here is where I believe Lenovo spent the right amount of focus on with the Gen 4 and its calibration between integrated Intel H-series CPUs and the beefier RTX 3060 Ti.

The TLDR of the Gen 4's approach to graphical performance is that the unit makes better use of the vapor chamber than in previous models, which keeps its cooled much better while topping out the TGP at 88W.

When comparing this model with previous ones, the addition of the RTX 3060 Ti proves to give users a noticeable 45% boost in graphical performance when plugged in, but only 15% when on battery.

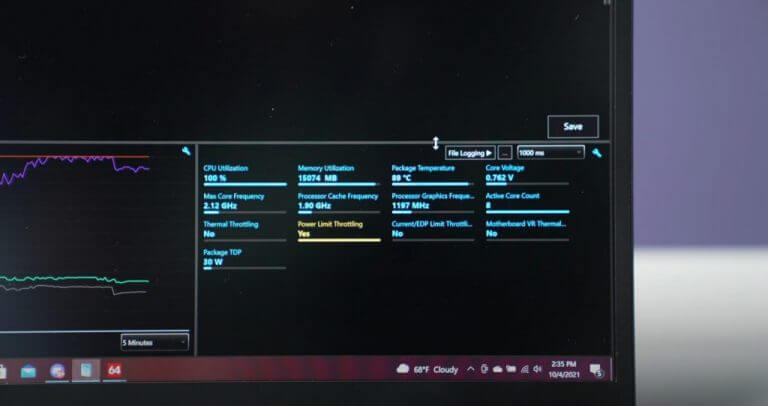

As for CPU, the Gen 4 toggles between boost modes pretty effortlessly while maintaining a decent 55W consumption peak allowing for longer high-performance task and calculations to occur and overall CPU performance.

Unfortunately, these gains are only seen on power, when on battery the device gets slightly worse performance while capped at 55W.

To squeak out more raw performance, customers can configure their Gen 4's with up to 64 GB of DDR4-3200 memory via the two SO-DIMM slots that are fairly easy to get to.

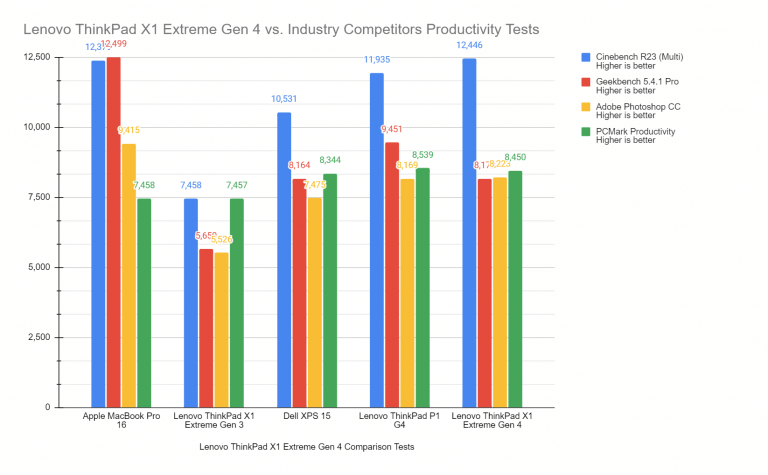

Lenovo ThinkPad X1 Extreme Gen 4 Review: The business MacBook Pro - OnMSFT.com - December 22, 2021

With all the synthetic test out of the way, my real-world experience with the Gen 4 was mixed. My jubilation of more GPU performance was dampened by constant reminder to stay near a power source.

The Gen 4 outperformed other laptops in a wide range of workloads and tasks but was ultimately knee-capped by the throttled performance when on-battery.

ThinkPad Extreme Gen 4 performance

Tasks such as editing multi layered polylines in AutoCAD were a breeze when the device was plugged in and I didn't mind whirring fans, but to keep the device semi cooled when on-battery, the task got a bit choppier.

For relatively less strenuous tasks such as rendering several 1080p video layers and playback the Gen 4 and its RTX 3060 Ti were just fine, both on and offer power supply.

Navigating through apps such as NetSuite, multi-account Google Ads Editor, Photoshop, Premier, Da Vinci Resolve, and Alteryx Designer with Power BI plugins were pretty smooth most of the time.

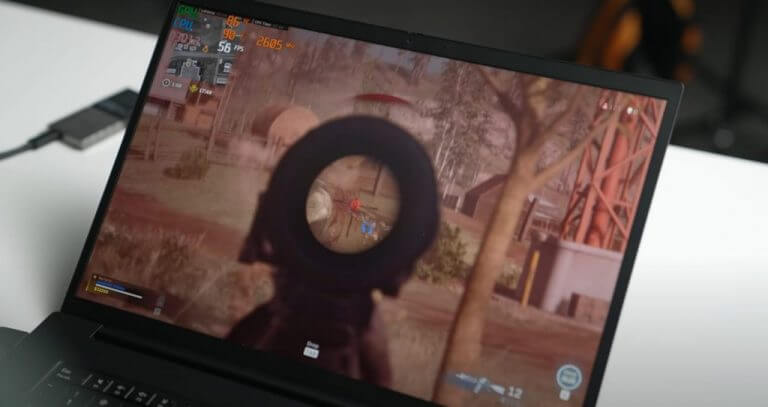

In terms of the non-work-related performance, the Gen 4 does a surprisingly good job of gaming, maintaining 70FPS on games such as Far Cry 6 and GTA 5 while only dipping a bit for first-person-shooters such as Battlefield and Halo Infinite.

Extreme Gen 4 gaming

Keep in mind, the pre-built customization from Lenovo will handicap the gaming performance out of the box because of the way the memory is pre-configured. With a quick change to the dual channel slots, you'll get the most of out the device.

UPDATE: when adjusting the memory, frame rates to games such as Call of Duty Warzone jumping from 50 to 60 FPS to almost 80 with no dropped frames.

Summary

So, I believe with a few quick manual adjustments from a base model of 16GB to 32 or 64GB or memory pushes the Gen 4 beyond the XPS15 at this point and allows the device to go toe to toe with Apple's ARM marvel in the M1 powered MacBook in terms of overall performance.

Understanding this is a Windows machine with an Intel CPU at its heart should prep any buyer with right mindset to make the most of the occasional fan noise, heat and battery drain from really pushing this device.

While much of the Lenovo computer line up can be a head scratcher with overlapping product categories, the Gen 4 is clear buy for anyone who favors a truly portable workstation.

Yes, there is the P-series and its thicker cousins in the T and L lines, but when it comes to totting around relatively compact PC equivalent of MacBook Pro right now, the options are the Gen 4 and XPS 15 and the Gen 4 offers better overall CPU and GPU performance.
